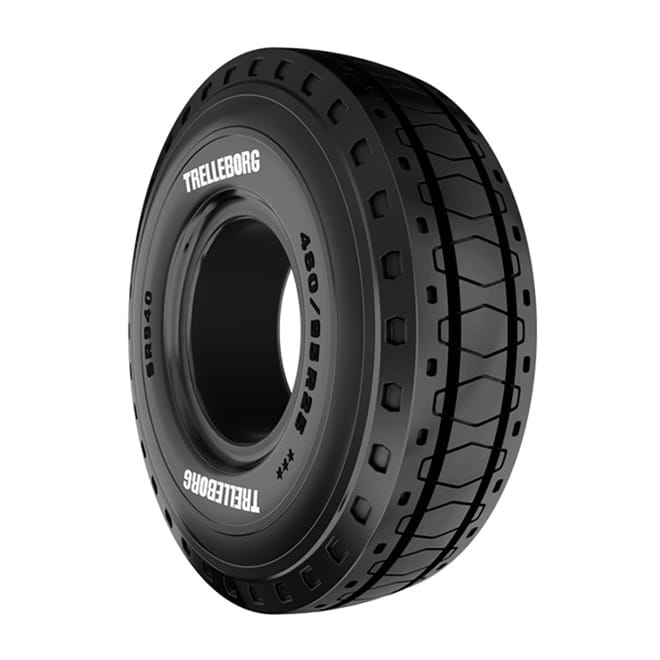

SR940
Get themost out of your tires. Designed for maximum tire life and best cost per hour.
Side circumferential rib: great handling and traction performance in wet conditions
Reinforced sidewall: excellent stability during loading and unloading operations
Extra-deep tread: superior tire life and best cost per hour
了解更多
下载
Trelleborg SR940 Brochure
Designed for life
技术数据
| Tire size | 480/95 R 25 |
| Service description LI/SS | 208 A5 |
| Permitted rims | 13.00/2.5-25 - 11.25/2.0-25 |
| Overall diameter - new [mm] | 1565 |
| Rolling circumference [mm] | 4872 |
| Tread depth [mm] | 51 |
| Tread pattern | SR 940 |
| Index of tire strength | *** |
| Type (tubeless/tube type) | TL |
| Section width - new [mm] | 469 |
| Loaded static radius [mm] | 683 |
| EAN code | 8059971597202 |
| Speed [km/h] | Tire load capacity [kg] | ||||
| Tire pressure [kPa] | |||||
|
800 |
850 |
900 |
950 |
1000 |
|
| 0 Static | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 1 Creep | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 5 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 10 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 15 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 20 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 25 | 15,000 | 15,750 | 16,500 | 17,250 | 18,000 |
| 30 | 14,450 | 15,150 | 15,900 | 16,600 | 17,350 |
| 35 | 13,900 | 14,550 | 15,250 | 15,950 | 16,650 |
